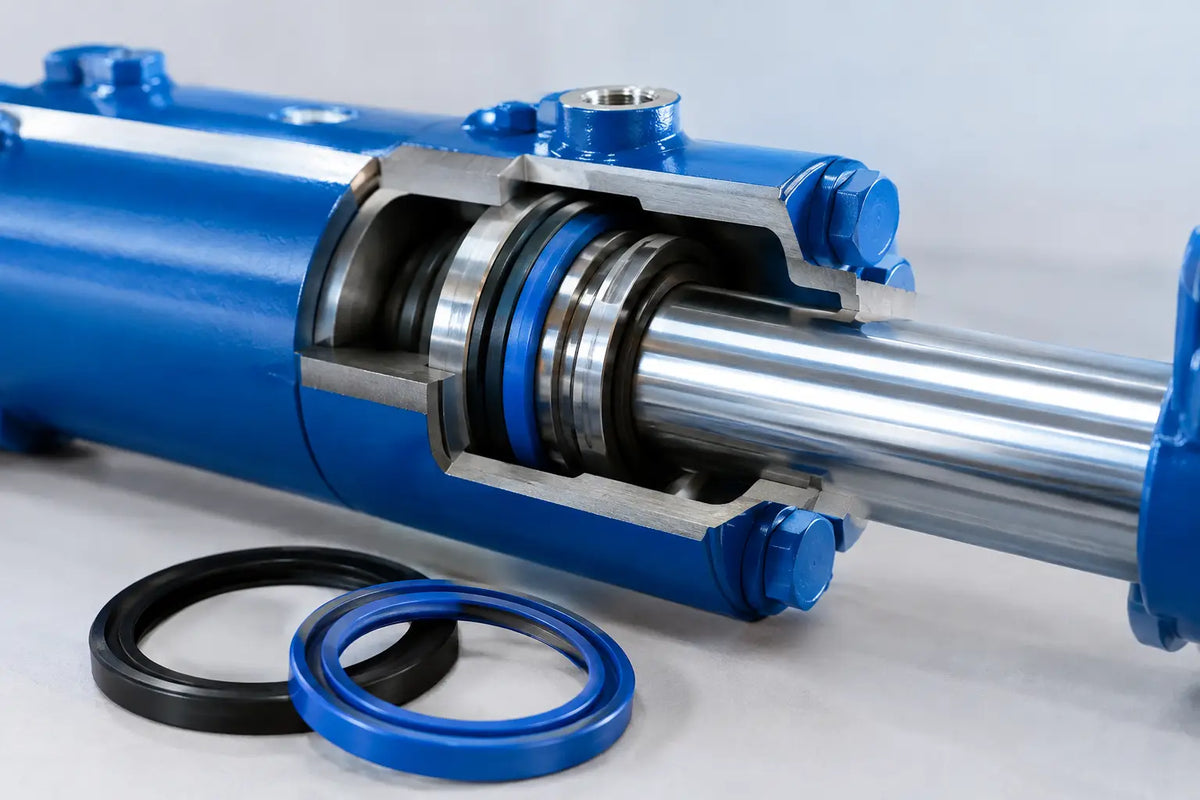

A hydraulic cylinder can look dry and serviceable from the outside while pressure damage is already working its way through the gland. This is where buffer seal function matters. Positioned on the pressure side of the rod seal, the buffer seal absorbs pressure spikes and restricts the pressure load that reaches the primary rod sealing element. In hard-working excavator, crane, loader, and forklift cylinders, that protection can be the difference between a planned reseal and an oil leak that stops the machine.
What Is the Buffer Seal Function?
A buffer seal is a dynamic hydraulic seal installed in the cylinder head or gland, normally between the piston-side pressure chamber and the rod seal. Its main job is not simply to stop oil. It controls transient pressure and reduces the risk of high-pressure fluid forcing its way past the rod seal.
During normal rod movement, the rod seal retains hydraulic oil while the wiper keeps dirt, water, and abrasive debris outside the cylinder. But operating conditions are rarely normal for long. A boom cylinder can see sudden pressure intensification when an attachment hits the end of travel, a loaded bucket is stopped abruptly, or a control valve shifts under load. Pressure may build in the small cavity between the buffer seal and rod seal. Without a suitable buffer seal, the rod seal becomes the first component exposed to those peaks.
The buffer seal takes that hit first. Depending on its profile and material, it may allow a controlled amount of pressure to pass or relieve trapped pressure back toward the cylinder side. This reduces extrusion, lip damage, and rapid wear at the rod seal.
Why Heavy Equipment Cylinders Need It
Not every hydraulic cylinder uses a buffer seal. Lower-pressure and light-duty cylinders may use a simpler gland arrangement with a rod seal and wiper only. Heavy equipment cylinders operating at high pressure, with long strokes, external side loads, or frequent shock loading are far more likely to need one.
Boom, arm, bucket, lift, tilt, steering, and outrigger cylinders are common applications. These cylinders operate through repeated pressure cycles and often work in dirty environments where repair intervals matter. If the gland was designed with a buffer seal, leaving it out during a rebuild is not a cost saving. It changes how the entire rod-sealing system handles pressure.
A correctly specified buffer seal supports three practical outcomes: longer rod seal life, lower external leakage risk, and fewer unplanned cylinder removals. For a fleet manager or repair shop, those outcomes directly affect downtime, labor cost, and machine availability.
Buffer Seal vs. Rod Seal vs. Wiper
These components work together, but they do different jobs.
The buffer seal sits closest to the hydraulic pressure. It manages pressure spikes and shields the rod seal from severe pressure loading.
The rod seal is the primary fluid-retention seal at the rod exit point. It prevents hydraulic oil from escaping along the moving rod under normal operating pressure.
The wiper seal, also called a scraper or dust seal, sits at the outside of the gland. It removes mud, dust, sand, and moisture from the rod as it retracts. A wiper does not replace a rod seal, and a rod seal does not replace a buffer seal.
In many gland designs, there may also be a guide ring, wear ring, or bearing element. This supports the rod and limits metal-to-metal contact. When a worn guide ring allows excess rod movement, even a high-quality buffer seal and rod seal can fail early.
How a Buffer Seal Handles Pressure Spikes
The pressure side of a buffer seal is designed to react differently from the atmospheric side. Under rising pressure, the sealing lip energizes against the rod and gland bore. That helps prevent high-pressure oil from reaching the rod seal cavity too quickly.
Some buffer profiles incorporate relief features that prevent trapped pressure between the buffer and rod seal. This is critical because pressure trapped in that cavity can push the rod seal outward, damage the wiper, or create a sudden external leak. The exact behavior depends on seal geometry, installed orientation, rod speed, fluid viscosity, and system pressure.
Material selection also matters. Polyurethane buffer seals are widely used for abrasion resistance and strength in mobile hydraulic equipment. Fabric-reinforced or elastomer-based designs may be selected for specific temperature ranges, fluids, or gland configurations. There is no universal upgrade material that suits every cylinder. The correct choice starts with the original seal profile, dimensions, pressure rating, and equipment application.
Common Signs of Buffer Seal Failure
External rod-end leakage does not automatically prove the buffer seal is at fault. A damaged rod seal, scored piston rod, worn guide ring, contaminated oil, or incorrect gland assembly can produce similar symptoms. Still, several failure patterns point to a buffer seal problem.
A cylinder may begin leaking shortly after a reseal if the buffer seal was omitted, installed backward, or replaced with the wrong profile. Repeated rod-seal blowout, a displaced wiper, or a rod seal that appears extruded are stronger signs that excessive pressure is reaching the outer gland components.
During disassembly, inspect the buffer seal for torn lips, hardened material, chunking, abrasion, deformation, or extrusion marks. Also inspect the rod seal cavity and the back side of the rod seal. If the rod seal has been forced out of position, do not treat it as a rod-seal-only repair.
The piston rod condition is equally important. Rust pits, chrome flaking, scoring, and embedded contamination can cut seal lips on every stroke. Replacing seals without correcting rod damage may restore operation briefly, but it will not deliver a durable repair.
Choosing the Correct Replacement Buffer Seal
Buffer seals are not interchangeable based on outside diameter alone. A seal that fits into the gland groove may still have the wrong lip arrangement, height, pressure direction, or material for the application.
Start with the cylinder manufacturer, machine model, and cylinder location. A boom cylinder kit may use a different gland arrangement from an arm or bucket cylinder kit on the same excavator. OEM part numbers, cylinder numbers, and existing seal markings provide the strongest fitment references when available.
If the original part number cannot be identified, verify the rod diameter, gland bore, groove width, groove depth, and seal height. Measure clean parts with suitable calipers and confirm whether the seal is a one-piece buffer design or part of a multi-component arrangement. Photos help identify the profile, but dimensions and application details are still required before ordering.
Check the operating environment as well. A machine working in demolition, quarry, marine, or high-temperature service may need a material selection that differs from standard construction use. Hydraulic fluid type should also be confirmed if the system uses anything other than conventional mineral-based oil.
For urgent repairs, buying a complete cylinder seal kit can reduce matching risk. A properly listed kit keeps the buffer seal, rod seal, wiper, O-rings, backup rings, and wear rings aligned with the same cylinder application. It also avoids a common workshop delay: discovering a missing small seal after the gland is already stripped.
Installation Details That Prevent Repeat Leaks
Correct installation begins with a clean work area. Dirt introduced during assembly can damage a new seal before the cylinder returns to service. Clean the gland, rod, and seal grooves thoroughly, then inspect all edges for burrs, corrosion, or damage.
Install the buffer seal in the same pressure orientation as the original. Do not assume every lip faces outward. Buffer seal designs vary, and an incorrect orientation can block pressure relief or expose the wrong sealing edge to system pressure.
Use proper installation tools where possible. Sharp screwdrivers, picks, and improvised metal tools can nick polyurethane lips or stretch the seal permanently. Apply compatible clean hydraulic oil for lubrication, protect seals when passing over threads or ports, and avoid twisting the seal during installation.
Before returning the machine to full load, cycle the cylinder slowly several times. Check for leakage, abnormal rod movement, and signs of pressure trapping at the gland. A quick functional check is cheaper than sending a machine back to the jobsite with a seal installed incorrectly.
Do Not Treat the Buffer Seal as a Generic Spare
A buffer seal is a pressure-management component, not just another ring in the kit. Its profile, dimensions, material, and orientation affect the service life of the rod seal and the cylinder as a whole. That is why matching by machine model, cylinder position, OEM number, or confirmed measurements is preferable to selecting a visually similar seal from stock.
For repair teams working against downtime, keep the cylinder details with the job record: equipment model, cylinder location, rod diameter, seal kit number, and any changes in rod or gland condition. When the same cylinder comes back for service, accurate information gets the right replacement dispatched faster. MXPseal can support that process with machine-specific kits and individual hydraulic seals when exact fitment is verified.
The practical rule is simple: if a cylinder was designed with a buffer seal, replace it with the correct profile and inspect the components it protects. A small sealing part can prevent a costly leak at the worst possible time.
