A dust seal can look like a minor part in a hydraulic cylinder kit, but it often determines whether the rod seal and piston seal get a normal service life. To prevent dust seal damage, treat the wiper as the cylinder’s first contamination barrier, not an optional finishing component. Once dirt, sand, concrete dust, or metal fines pass the wiper, they are carried into the gland area with every rod retraction.
For excavators, loaders, cranes, forklifts, and agricultural equipment, that contamination can quickly turn into scored rods, worn guide bushings, leaking rod seals, and an unplanned cylinder rebuild. The cost is rarely limited to one dust seal. Correct diagnosis, clean assembly practices, and exact replacement fitment are what keep a small seal failure from becoming extended machine downtime.
Why Dust Seals Fail Before the Cylinder Does
A dust seal, also called a wiper seal or scraper seal, removes external contamination from the piston rod as the rod retracts. It must maintain controlled contact with the rod while allowing smooth movement over a wide range of temperatures, stroke speeds, and operating conditions.
On working equipment, the seal is exposed to conditions that do not appear on a clean workshop bench: packed soil, abrasive quarry dust, dried mud, demolition debris, salt residue, paint overspray, and pressure-washing chemicals. A wiper can be cut, hardened, displaced, or worn away long before an operator notices hydraulic oil at the rod end.
The common mistake is replacing only the visibly damaged dust seal without checking what caused it. If the rod is scored, the guide bushing has excessive clearance, or the gland bore is damaged, a new seal may fail during the first few operating shifts. Replacing the correct component is necessary. Removing the source of damage is what makes the repair last.

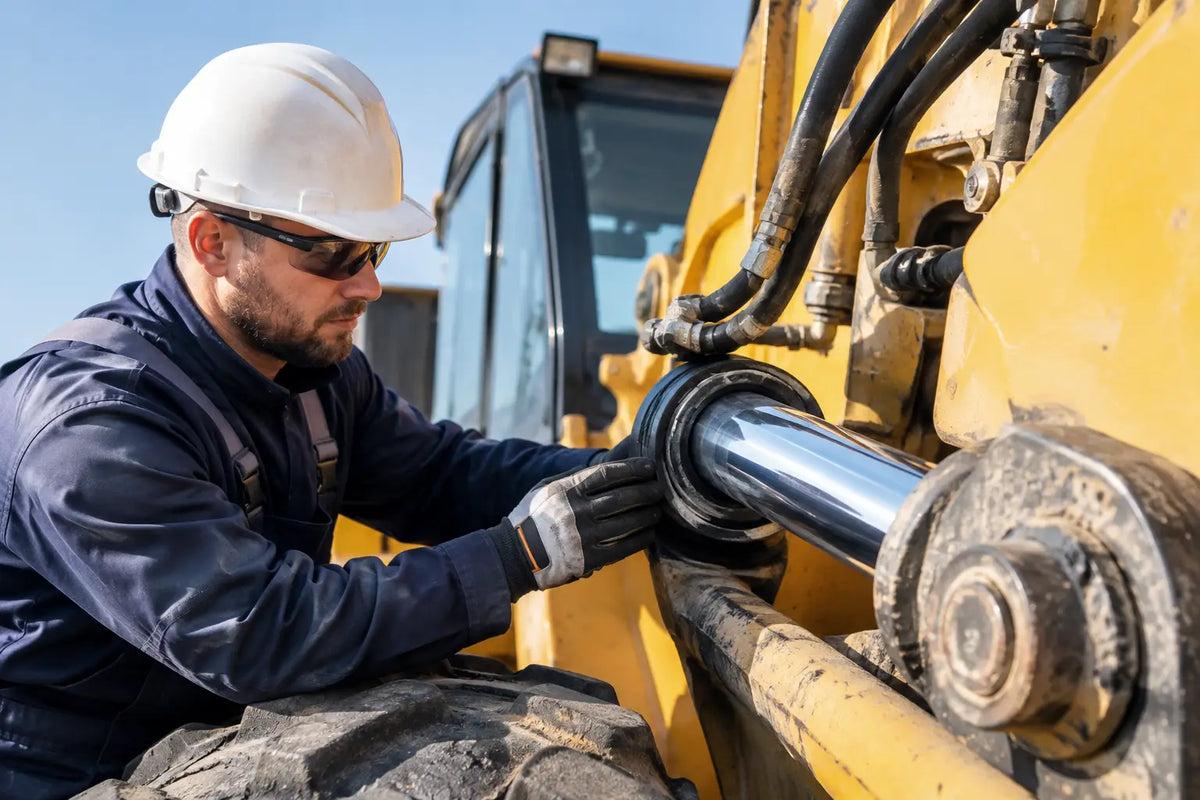

Inspect the Rod Before Fitting a New Dust Seal
The piston rod is the sealing surface. Any defect that passes through the dust seal lip acts like an abrasive tool. Clean the rod fully and inspect it over the complete stroke, not only the exposed section when the attachment is parked.
Look for longitudinal scratches, corrosion pits, chrome flaking, weld spatter, dents, and raised burrs around the rod end. A shallow mark that cannot be felt may be acceptable depending on the application, but a sharp defect that catches a fingernail can cut a new wiper or rod seal immediately. Do not try to polish away deep damage until the rod diameter is undersize or the chrome surface is compromised.
Also check for contamination trapped around the cylinder head. Hardened mud and debris can pack around the wiper area, increasing friction and deforming the seal lip. On machines that work in abrasive sites, cleaning the cylinder rods during routine service is basic preventive maintenance, especially before long periods of storage.
Check Rod Straightness and Side Loading
A dust seal that is wearing heavily on one side usually points to more than normal use. Excessive side loading can come from worn pin bores, loose attachment linkage, bent rods, damaged cylinder mounts, or worn guide rings and bushings inside the cylinder.
When the rod is not running concentrically through the gland, the wiper lip is loaded unevenly. One side may become thin, roll over, or pull out of its housing. The rod seal is normally affected next. Check the cylinder mounting arrangement and guide components before fitting another seal kit, particularly on boom, arm, bucket, tilt, and steering cylinders that see frequent lateral loads.
Use the Correct Dust Seal Profile and Material
Dust seals are not interchangeable just because the rod diameter appears correct. The outside diameter, housing depth, lip design, and retention method must match the gland. A press-fit metal-cased wiper, a polyurethane snap-in wiper, and a rubber-bodied dust seal may all fit similar rod sizes, but they are designed for different grooves and service conditions.
An incorrect outside diameter can cause a loose fit that allows the seal to walk out of the gland. An over-tight seal can distort during installation or create excess drag on the rod. Incorrect height can prevent the gland from seating correctly or leave the lip unsupported.
Material selection also matters. Polyurethane wipers are widely used for abrasion resistance and tough outdoor service. Nitrile-based designs may suit general hydraulic applications and common oils. In high heat, chemical exposure, or severe weather environments, the seal material must be selected against the actual operating conditions. The right profile depends on the cylinder design, not on a general preference for one material.
For machine-specific repairs, verify the equipment make, model, cylinder position, OEM part number, and dimensions where available. A boom cylinder kit may not share the same wiper as an arm, bucket, lift, or steering cylinder on the same machine. MXPseal stocks both standardized seal profiles and equipment-specific cylinder kits, making it practical to match the part before the cylinder is opened.
Prevent Dust Seal Damage During Installation
Many early failures begin at assembly. The lip of a dust seal is thin by design and can be cut or turned inside out by a sharp gland edge, retaining-ring groove, thread, or rod shoulder. Installation should be controlled, clean, and deliberate.
First, remove all old seal fragments, corrosion, adhesive residue, and contamination from the gland. Inspect the wiper bore for nicks, burrs, and fretting. A damaged bore may not retain a press-fit dust seal correctly, even when the new part is dimensionally correct.
Use an installation tool that supports the seal evenly. Avoid striking one side of the seal with a punch or screwdriver. Metal-cased wipers can be bent out of round, while polyurethane types can be nicked or stretched. Apply only a compatible, clean lubricant in a light film. Excess grease can collect dust at the rod end and can mask contamination during assembly.
Before inserting the rod assembly, protect the wiper lip from sharp edges. A proper installation sleeve or tapered guide is the safest option. If the rod has threads, cross-holes, keyways, or a sharp transition, cover them before passing through the seal. Never force the rod through a new wiper and assume the lip will recover.
Keep Seal Kits Clean Until Assembly
Seal kits should remain in their packaging until the cylinder components are cleaned and ready. Workbench dust, grinding debris, shop rags, and contaminated hydraulic oil can defeat a new kit before the machine returns to service.
Keep different seal profiles separated during disassembly. On complex cylinders, take reference photos and lay out components in order. This prevents a wiper, buffer seal, rod seal, guide ring, or O-ring from being installed in the wrong position. If there is any uncertainty, verify the kit breakdown against the cylinder application and dimensions rather than relying on visual similarity.
Control the Conditions That Wear Wipers Fast
No dust seal lasts forever in quarry, demolition, mining, marine, or land-clearing work. The goal is to control the conditions that accelerate wear and identify damage before contamination reaches the hydraulic system.
Daily walk-around checks are useful when they focus on the right details. Watch for a wiper pushed out of the gland, oil wetness mixed with dust around the rod, a polished band on only one side of the rod, or debris being dragged into the cylinder head. These signs justify a closer inspection before a leak becomes a repair job.
Pressure washing can help remove packed material, but direct high-pressure spray at the seal lip can force water and grit into the gland area. Clean the rod and cylinder head carefully, then allow the area to dry. During storage, retract exposed rods where the machine design allows. A fully exposed rod left in rain, dust, or salt air is more likely to corrode and damage seals when the machine returns to work.
Hydraulic oil cleanliness still matters. A dust seal works from the outside, but internal contamination will wear guide components and seals from within. Maintain filtration intervals, use clean filling equipment, and investigate repeated seal failures rather than changing parts on a schedule alone.
When a Dust Seal Needs More Than Replacement
Replace a damaged dust seal promptly if it is torn, missing, loose in the gland, hardened, or visibly worn through. If the rod seal is leaking at the same time, rebuild the gland with the correct matched kit rather than replacing one component in isolation. Mixing old and new sealing elements can create uneven friction and leave worn backup components in service.
A full cylinder inspection is the better decision when there is rod scoring, recurring one-sided wear, unexplained leakage, excessive rod movement, or metal contamination in the oil. The extra inspection time is usually cheaper than reopening the cylinder after installation, arranging another equipment stoppage, and paying for rush parts and labor.
The practical standard is simple: a clean, straight rod, a sound gland, correct guide support, and an exact-fit dust seal give the cylinder its best chance of staying dry and contamination-free. When replacement is due, match the kit to the machine and cylinder location before dispatching the repair back to the field.
